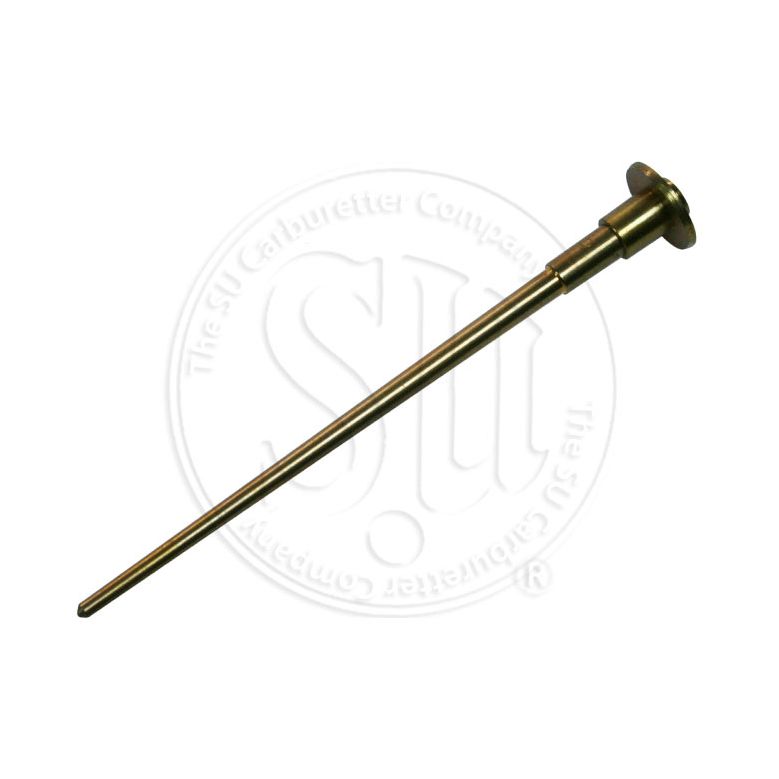

SU Fixed Metering Needle — Code WB | AUD 1419 | SU Specialists

Genuine SU fixed metering needle, code WB, for SU carburettors with a 3/16in jet.

• Needle code: WB
• Type: Fixed
• Jet size: 3/16in
• Profile stations: 20

Needle profile

Diameter in inches at each station, measured every 1/8in down the needle from the shoulder (station 1). A smaller diameter gives a richer mixture at that point. Stations 1–2 set the idle, 3–6 cover part throttle, cruising and pickup, and 7–9 the top end and full throttle on a 1¼in carburettor.

– = value not legible in our reference copy; contact us if you need it.

Not sure which needle you need? Use Find My Kit or send us your carburettor details and we will check it for you.
